Place of Origin: | China (Mainland) |
Brand Name: | QH |
Model Number: | QH-LFP72174138-160AH |
Minimum Order Quantity: | 4pcs |
---|---|
Price: | Negotiable |
Packaging Details: | carton packing |
Delivery Time: | 4-7 days |
Payment Terms: | T/T |
Supply Ability: | 10000 |

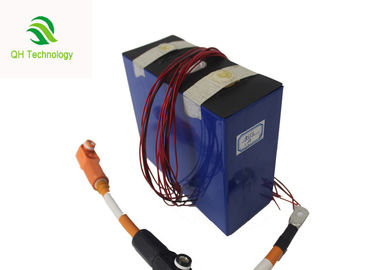

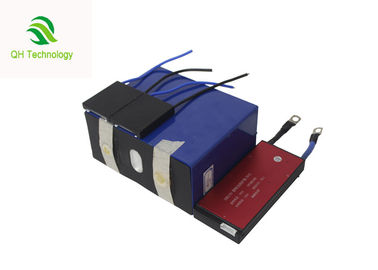

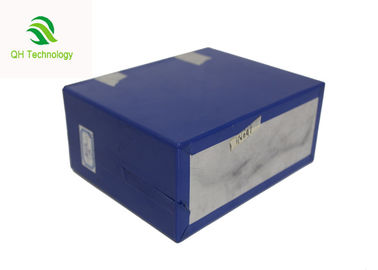

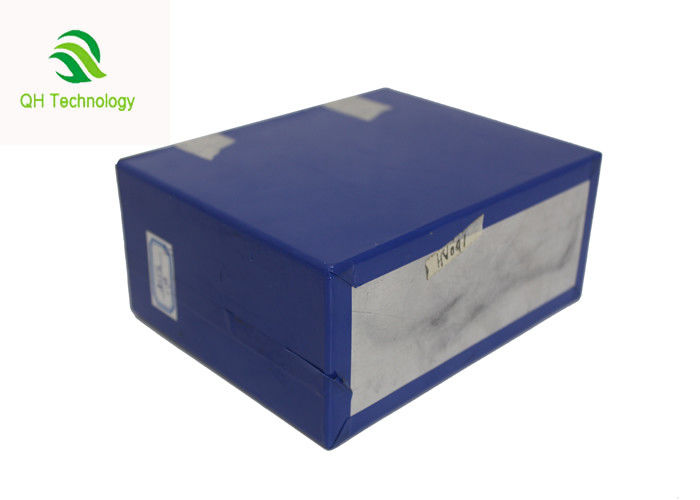

3.2V 160AH Lithium Prismatic Cell Lifepo4 Portable 12V Battery Pack
Model | QH-LFP72174138-160AH |
Casing material for single cell | Aluminum shell |
Nominal Voltage | 3.2V |
Cut-off Voltage | Charging: 3.65V |
Discharging: 2.5V | |
Capacity | 160AH |
Keywords | Lifepo4 Prismatic Battery cell |
Internal Resistance | ≤ 0.8mΩ |
Charging Current | 32A (Standard Charging) |
Max Charge Current | 160A |
Const. Discharge Current | 160A |
Max Discharge Current | 240A |
DOD | 80% |
Life Cycle | 5000 times |
Dimension | D72*W174*H138 MM |
Cell Weight | 3.46 KG |
Safety Protection | Over Charging Over Discharging Short Circuit Penetration Thermal shock No Fire/Explosion |
Our Guarantee:
Ensure that the product undergoes rigorous inspection before leaving the factory to ensure that the quality of the manufactured product is qualified. In addition to, we promise that this project will be free from maintenance and assembly defects within two years from the date of purchase. Warranty applies only to material or operational defects that occur at the time of purchase. In the meantime, we will repair or replace the products that are deemed defective for these reasons. You will be asked to provide proof of purchase (invoice or receipt). This warranty does not apply to any damage or consequential damage resulting from incorrect application, modification or failure to follow the procedures described in this manual. Therefore, it is hoped that you can read the instructions carefully and follow the instructions before using this product.
Packaging & Shipping
During the transportation process, the lifepo4 battery is used alone for short circuit protection.
All the batteries are packed in sturdy cartoon boxes that are protected from the damage during transportation.
Ordinary transportation: suitable for air, sea, passenger, cargo aircraft transport.
More information can be obtained from the label, including lithium battery, must be careful to deal with, and if necessary, special procedures for telephone numbers.
Features:
High cycle life |
Low self-discharge |
Environmental protection, no pollution |
Excellent safety performance |
No maintenance operation |
Extensive temperature operation. |
