| Place of Origin: | China |
| Brand Name: | QH |
| Certification: | KC/MSDS/UN38.3/ROHS/UL |
| Model Number: | QH-LFP34200168-100AH |
| Minimum Order Quantity: | 4 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton packaging |
| Delivery Time: | 4-7 Days |
| Payment Terms: | PAYPAL, T/T Bank Transfer, Alibaba Online |
| Supply Ability: | 1000PCS / Month |

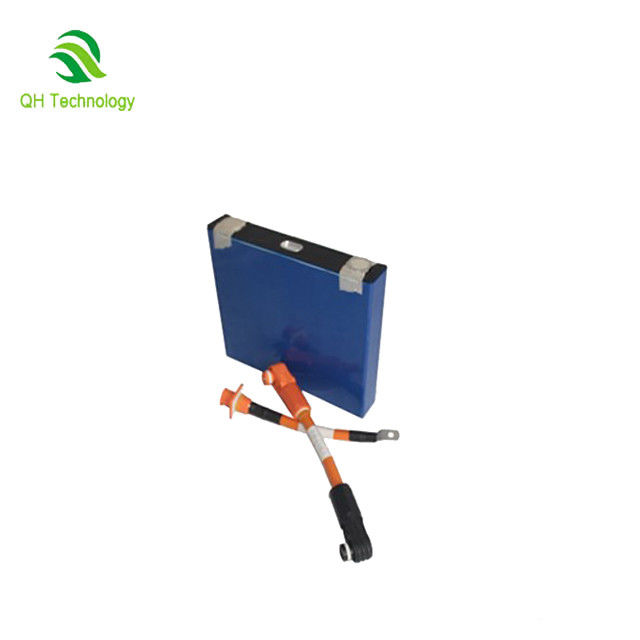

3.2Volatge 100AH Lithium Iron Phosphate Battery Lifepo4 Motorcycle Battery
| Model | QH-LFP34200168-100AH |
| Casing material for single cell | Aluminum shell |
| Nominal Voltage | 3.2V |
| Cut-off Voltage | Charging: 3.65V |
| Discharging: 2.5V | |
| Capacity | 100AH |
| Keywords | Lifepo4 Prismatic Battery cell |
| Internal Resistance | ≤ 0.8mΩ |
| Charging Current | 20A (Standard Charging) |
| Max Charge Current | 100A |
| Const. Discharge Current | 100A |
| Max Discharge Current | 200A |
| DOD | 80% |
| Life Cycle | 5000 times |
| Dimension | D34*W200*H168MM |
| Cell Weight | 2.85 KG |
| Safety Protection | Over Charging Over Discharging Short Circuit Penetration Thermal shock No Fire/Explosion |
transport:
1. We will ship within 15 working days after receiving the payment.
2. We can ship to you via UPS / FEDEX / DHL etc. Other transportation terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues. This is the responsibility of the shipping service.
Battery quality control for after-sale
All QH batteries in the package have a high degree of consistency. In a group, each cell has after-sales service for quality control. Your own electronic code (ID number), assuming that one cell in the package was damaged in a few years, we can provide customers with exactly the same cell to replace the damaged cell (same voltage, capacity, impedance, etc.) To ensure that all the cells in this package have a very high consistency. Melsen has a strong system for this job.
Features:
| High cycle life |
| Low self-discharge |
| Environmental protection, no pollution |
| Excellent safety performance |
| No maintenance operation |
| Extensive temperature operation. |
