Place of Origin: | China |
Brand Name: | QH |
Certification: | KC/MSDS/UN38.3/ROHS/UL |
Model Number: | QH-LFP34200168-100AH |
Minimum Order Quantity: | 4 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Carton packaging |
Delivery Time: | 4-7 Days |
Payment Terms: | PAYPAL, T/T Bank Transfer, Alibaba Online |
Supply Ability: | 1000PCS / Month |

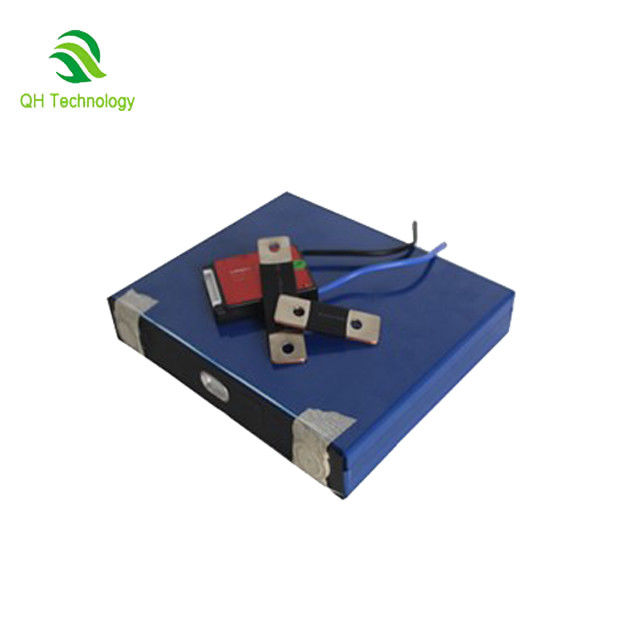

3.2Voltage100AH Lifepo4 Battery Pack Communication Base Station Power Supply
Model | QH-LFP34200168-100AH |
Casing material for single cell | Aluminum shell |
Nominal Voltage | 3.2V |
Cut-off Voltage | Charging: 3.65V |
Discharging: 2.5V | |
Capacity | 100AH |
Keywords | Lifepo4 Prismatic Battery cell |
Internal Resistance | ≤ 0.8mΩ |
Charging Current | 20A (Standard Charging) |
Max Charge Current | 100A |
Const. Discharge Current | 100A |
Max Discharge Current | 200A |
DOD | 80% |
Life Cycle | 5000 times |
Dimension | D34*W200*H168MM |
Cell Weight | 2.85 KG |
Safety Protection | Over Charging Over Discharging Short Circuit Penetration Thermal shock No Fire/Explosion |
Our Guarantee:
Ensure that the product undergoes rigorous inspection before leaving the factory to ensure that the quality of the manufactured product is qualified. In addition to, we promise that this project will be free from maintenance and assembly defects within two years from the date of purchase. Warranty applies only to material or operational defects that occur at the time of purchase. In the meantime, we will repair or replace the products that are deemed defective for these reasons. You will be asked to provide proof of purchase (invoice or receipt). This warranty does not apply to any damage or consequential damage resulting from incorrect application, modification or failure to follow the procedures described in this manual. Therefore, it is hoped that you can read the instructions carefully and follow the instructions before using this product.
Battery quality control for after-sale
All QH batteries in the package have a high degree of consistency. In a group, each cell has after-sales service for quality control. Your own electronic code (ID number), assuming that one cell in the package was damaged in a few years, we can provide customers with exactly the same cell to replace the damaged cell (same voltage, capacity, impedance, etc.) To ensure that all the cells in this package have a very high consistency. Melsen has a strong system for this job.
Battery transportation matters:
1. DHL/EMS/UPS/FEDEX/HK EMS/TNT/HK post and other express (door to door)
2. As for air shipping, please select your favorite transportation as per your requirements.
3. The shipping discount depend on different seasons and rely on different weight, we assure we will select the cheapest and safest method according to your quantities.
4. Generally, it will cost about 3-7days from China to destination nation. Please aware that some remote parts will need more 1-3 days.
