| Place of Origin: | China |
| Brand Name: | QH |
| Certification: | CE ROHs LC |
| Model Number: | lifepo4 |
| Casing material for single cell: | Aluminum shell |
|---|---|
| Nominal Voltage: | 3.2V |
| Material: | Lifepo4 |
| Core size: | D54*W173*H200MM |
| Cell Weight: | 3.82kg |
| Internal Resistance: | ≤ 0.4mΩ (At 0.2C rate, 2.0V cut-off) |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | carton packing |

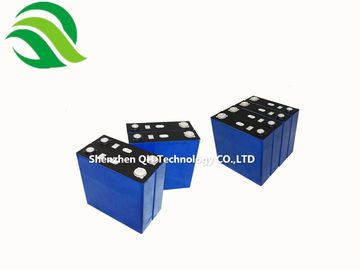

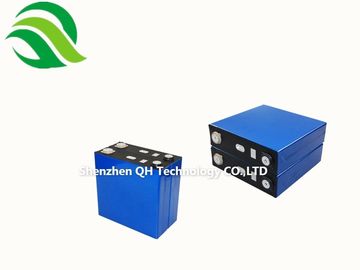

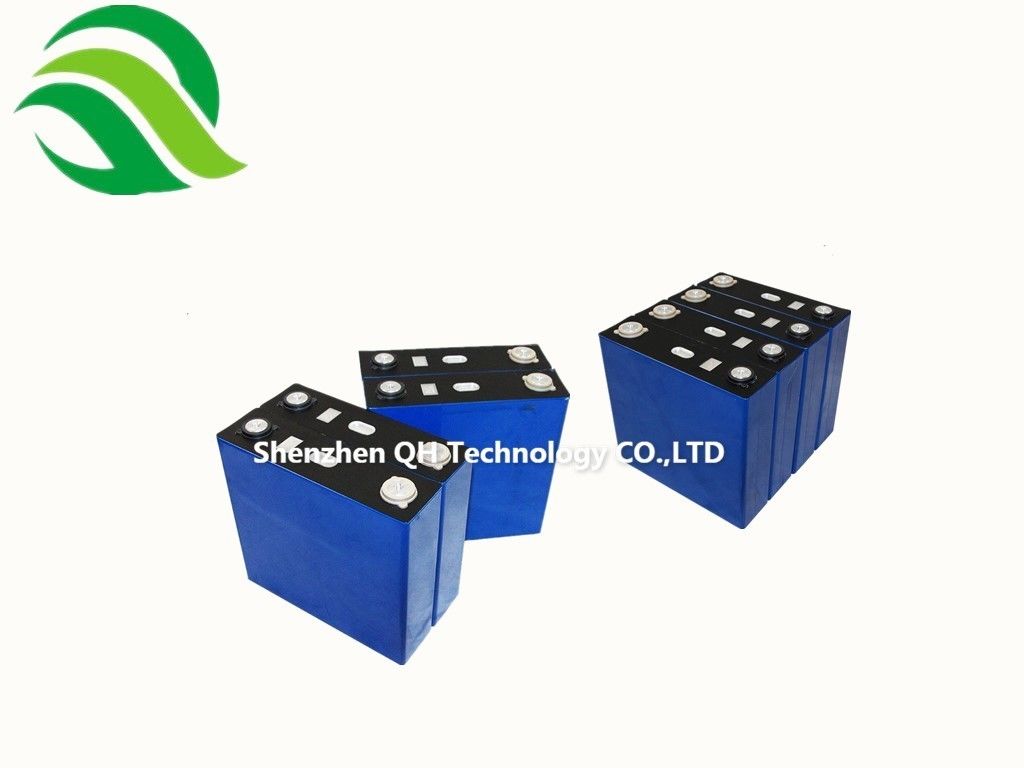

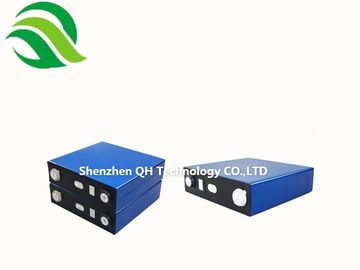

Lithium Iron Phosphate Long Cycle Lifepo4 Battery 3.2V 176Ah Backup Power System
|
Nominal Voltage |
3.2V |
|
Capacity |
176Ah |
|
Charging Current |
Standard Charging:0.2C |
|
Max Discharging Rate |
Max Discharging:2C |
|
Cut-off Voltage |
Charging:3.65V Discharging:2.5V |
|
Working Temperature |
Charging: -10℃~75℃ |
|
Storage Temperature |
≤1month: -10–45℃ |
|
Life Cycle |
>6000times |
Main applications
(1) Power electric vehicles: electric bike, scooter, motor, electric wheelchairs, electric bicycle, power tools, fishing boats, yachts.
(2) Portable Devices: PDA (Personal Digital Assistant), GPS, notebook, laptop.
(3) Video Devices: LED flashlight, cordless phone, camera, safety alarm.
(4) Others: Electric meter water instrument, backup power, emergency light, LED light, CCTV camera.
Advantages
|
Safe and Reliable |
Because of the short-circuit production function and technical injection support. |
|
Long Cycle Life |
Under normal circumstances, can withstand more than 500 repeated charge / discharge cycles lossless. |
|
Fast Charge Capacity |
When the rated voltage is 4.2/6, it can be fully charged within 2 - 3 hours. |
|
Pollution-free |
No heavy metal such as Pb, Cd is added |
|
Strong Resistance |
Dual IC chips can anti-short-circuit, anti-over charger, anti-overcurrent, anti-overload. |
|
Standards |
ROSH / SGS / UL / Chemicals / UN38.3 / IEC 61233 certification. |
FAQ
Q1. Can you ship battery out of China?
A: Yes. You can tell us your address to check whether it is within our distribution range.
Q2.How do you ship the product packs?
A: It depends on the size and quantity. For sample or small order, we usually ship by express, like DHL, UPS, FEDEX, and TNT. If the orders are large, we will arrange air cargo or sea freight for shipment.
Q3. What is the MOQ?
A: 1.
Q4. Can we put different LiFePO4 battery pack in series by ourselves?
A: You can buy big voltage directly from us. We do not recommend connecting them in series, which may damage the cycle life of the battery pack.
Q5. Can we put different LiFePO4 battery pack in parallel by ourselves?
A: First of all, you need to make sure that you only put same specific battery pack in parallel. Secondly, we provide excellent services, so you can tell us your requirement for the quantity and the final discharge current, and we will choose the best battery management system for you to fit a single battery pack BMS to your final battery pack.
Q6. Does your battery pack include BMS? Can we use it for car?
A: Yes, BMS included. You can use it for low-speed vehicles or auxiliary vehicles. We suggest not using it directly for standard cars, which requires a more complex BMS design.
Q7. What warranty can I get?
A: We offer 5 years warranty for our battery. Our products are high quality. Long life-cycle, which can be circularly used, best can up to 6000 times recycles. The battery will be protected from over charge and over discharge due to the installed IC chip which helps protect battery’s chemistry integrity and lengthen the battery’s life span.
