| Place of Origin: | China |
| Brand Name: | QH |
| Certification: | CE ROHs LC |
| Model Number: | lifepo4 |
| Nominal Voltage: | 3.2V |
|---|---|
| Cell Weight: | 2.12kg |
| Internal Resistance: | ≤ 0.6mΩ (At 0.2C rate, 2.0V cut-off) |
| Casing material for single cell: | Aluminum shell |
| Core size: | D48*W174*126MM |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | carton packing |

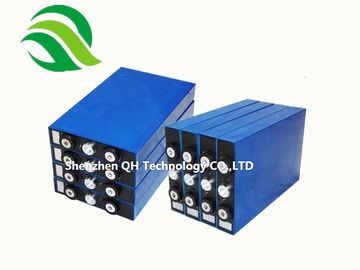

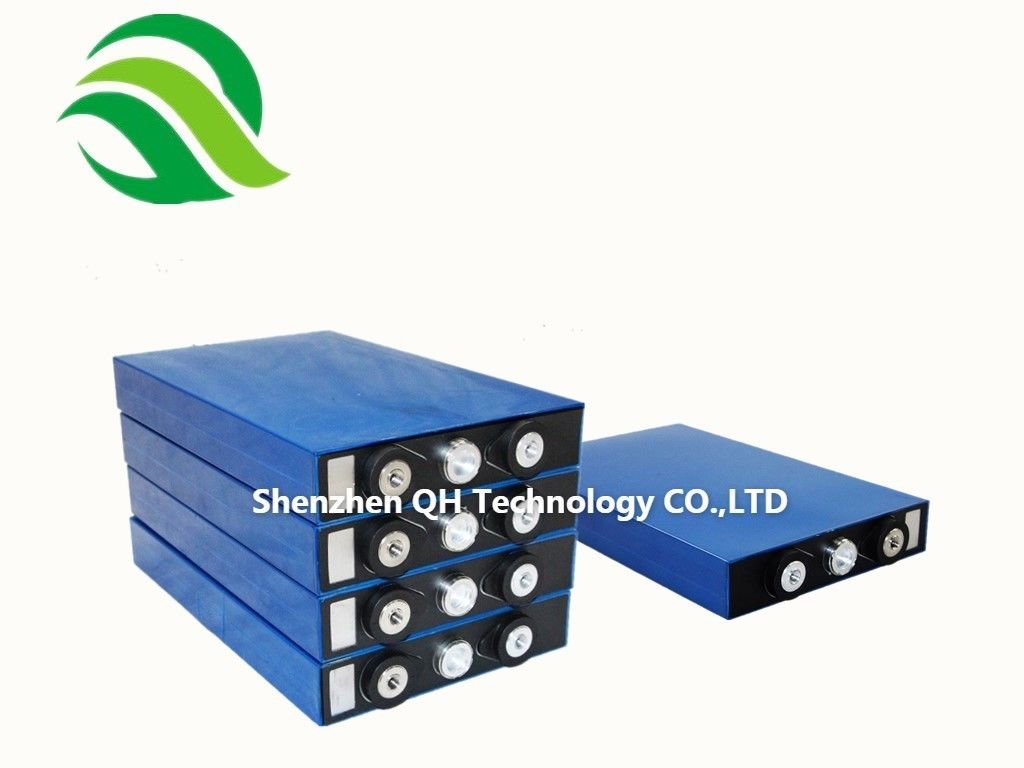

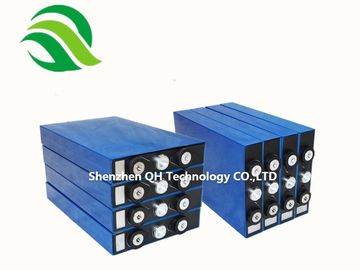

Lithium Iron Phosphate Good Lifepo4 Battery Cells 3.2V 86Ah Family Backup Power
|
Nominal Voltage |
3.2V |
|
Capacity |
86Ah |
|
Charging Current |
Standard Charging:0.2C |
|
Max Discharging Rate |
Max Discharging:2C |
|
Cut-off Voltage |
Charging:3.65V Discharging: 2.5V |
|
Working Temperature |
Charging: -10℃~75℃ |
|
Life Cycle |
>6000times |
Applications
1. Large electric vehicles: buses, electric cars, tour buses and hybrid vehicles and other attractions.
2. Light electric vehicles: e-bike, scooters, e-motor, golf trolleys, forklifts, electric wheelchairs, sightseeing cars, small flatbed battery cars, etc.
3. Toys: remote control cars, boats, aircrafts, tractors, etc.
4. Power tools: electric saw, electric drill, lawn mower, etc.
5. Miner’s lamp, emergency light, LED light, security equipment, torch light.
6. Solar and wind power generation energy storage devices.
7. Small medical equipment and portable equipment.
Features
1. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
2. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, about 7 times of lead acid battery.
3. Capacity, resistance, Voltage, platform time consistency is good.
4. High discharge rate capability, 10C continuous, 20C pulse discharge.
5. Pollution-free. It does not contain any toxic heavy metals such as lead, cadmium, nor any corrosive acids or alkalis.
6. Low self-discharge rate, about 1~2% per month.
7. Good performance at high temperature and high temperature resistance. Even it can be used in 70 centigrade degree. It is the battery which can stand the highest temperature among all other rechargeable battery .It also can stand -20 centigrade degree cold temperatures.
8. Maintenance-free and no acid or water for maintenance in usage.
9. It can be connected in series for higher voltages or parallel for higher capacity.
Why choose us?
1. We provide free samples.
2. Our company, with 10 years’ experience in R&D battery, has been processing custom battery business since 2008.
3. The quality of battery management system/PCMs is excellent, and each program is tested by experienced and professional engineers.
4. The output battery reaches the highest standard and has a two-year warranty.
5. Our batteries have passed ISO9001-2008 quality system certification.
6. Clean room 5S plant will not produce harmful substances to the human body.
7. Accept small order.
Our Guarantee
1. We provide 5 years warranty.
2. Warranty applies only to material or operational defects that occur during warranty period.
3. We will repair or replace the products that are deemed defective for reasons for the manufacturing process, but not for customer abuse or misuse. If you want to replace it, proof of purchase like invoice or receipt needs to be provided.
4. Hope that you can read the instructions carefully and follow the instructions before using this product.
