| Place of Origin: | China |
| Brand Name: | QH |
| Certification: | CE ROHs LC |
| Model Number: | lifepo4 |
| Material: | LiFePO4 |
|---|---|
| Voltage: | 48V-24V-12V |
| Capacity: | 10kwh-20kwh-30kwh-40kwh-50kwh |
| Assemble Type: | Customized |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | carton packing |

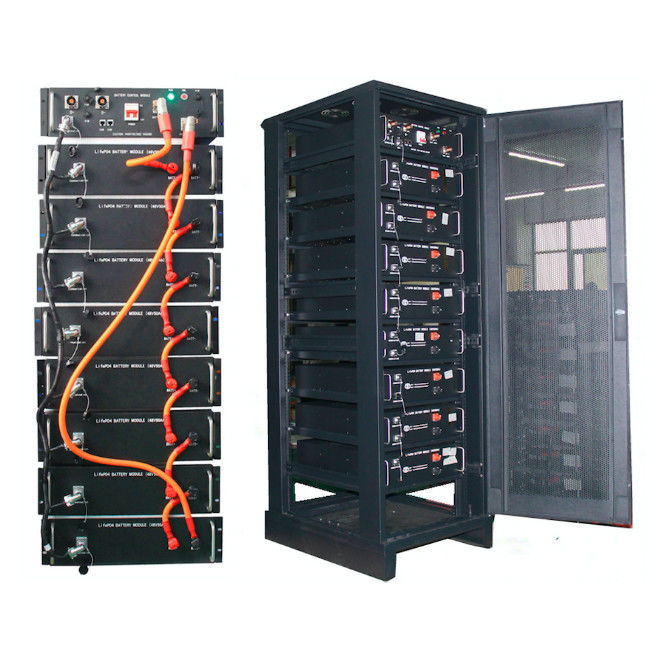

High Capacity Energy Storage Battery 10KWH/20KWH/30KWH/40KWH/50KWH Available.
We can customize ALL RANGE OF VOLTAGE for our customers.
Feel free to contact us for more details.
160pcs 50Ah LifePo4 battery,16S10P
51.2Vdc 500Ah 25.6Kwh rated capacity
Long cycle life 3500 times at least on 80% DOD
Customized charger make system life maxmization
High reliability intelligent BMS
Unique automatic calibration active balancing technology BMS system
51.2Vdc voltage output,suitable for home energy storage system,communication stations and other applications
Standard CAN &RS485 communication port,can meet the requirment of several packages to connect in parallel,Master & Slave relationship, Monitor and other prolongation functions.
Basic Specification
NO | Items | Description
Normal specification
1 Rated Voltage 51.2V
2 Rated Capacity 500Ah
3 Rated Energy 25.6KWH
4 Battery Configuration 16S10P
5 Battery Cell 3.2V50AH 160PCS
Standard Charge
1 Battery operation temperature range f^charging 0~45C
2 Max charge voltage 58.4±0.4V
3 Rated charge voltage 56.0±0.4V
4 Allowed MAX charge current 180A
5 Rated charge current 150A
Standard dtocharge
1 Battery operation temperature range ^discharging -20-60X:
2 Output Voltage Range 40 〜58.4V
3 Allowed MAX dlscharae current 330A withstand lmin
4 Peak discharge current 360A withstand 5s
5 Rated discharge current 300A
6 Discharge Cut-off voltage 40V
Communication
1 RS485 For LCD remote control (option)
2 CAN PC control and monitor (one communication CAN card support ten packs parallel )
Mechanical Characteristics
1 Dimension length:688mm
Width:530mm
Height:1290mm
2 Weight Approoc. 310Kg
Storage and Transportation requirements
1 Storage
Temperature Less than 1 month -20-35 X:
Less than 6 month -10~30X:
2 Storage Humidty 45-75%RH
3 soc Storage 60-75% SOC
Transport 45-55% SOC
High Capacity Energy Storage Battery 10KWH/20KWH/30KWH/40KWH/50KWH Available.
We can customize ALL RANGE OF VOLTAGE for our customers.
Feel Free To Contact Us For More Details.
