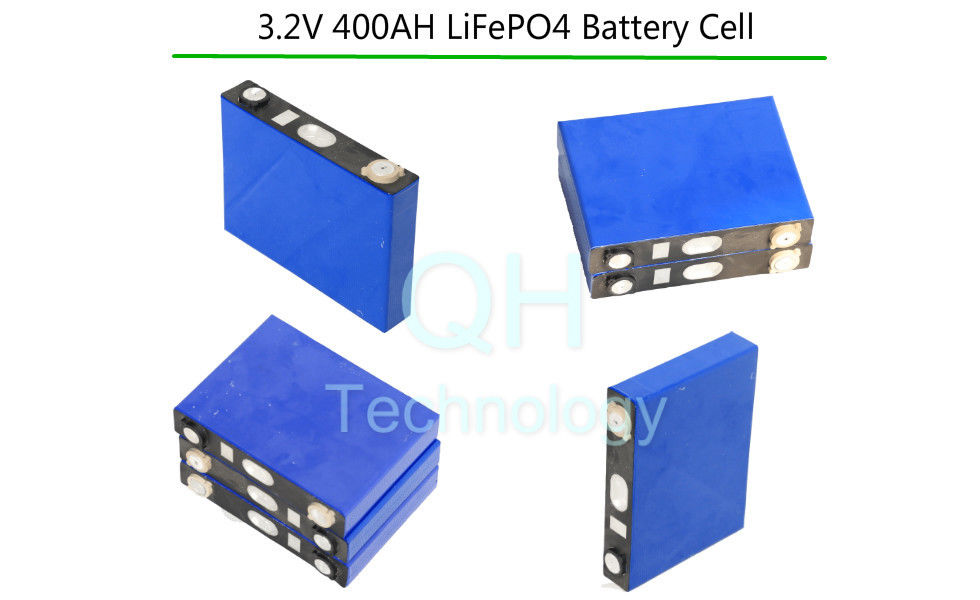

Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage

I'm Online Chat Now

Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage

China Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage supplier

Large Image :  Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage

Product Details:

Place of Origin: China
Brand Name: QH
Certification: CE ROHs LC
Model Number: lifepo4
Material: LiFePO4
Voltage: 3.2V
Capacity: 400AH
Shape: Prismatic

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: carton packing
Contact Now
Detailed Product Description

 Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage

Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage





                                        Specifications:

                                        Model QH-LFP54384243-400

                                        Casing material for single cell Aluminum shell

                                        Nominal Voltage 3.2V

                                        Capacity 400Ah

                                        Dimensions D54*W384*H243MM

                                        Cell Weight 9.8KG

                                        Charging Current Standard Charging: 0.2C

                                        Max. Charging: 1C

                                        Discharging Rate Max Continuous Discharging:1C

                                        Max Peak Discharging:2C

                                        Cut-off Voltage Charging:3.65V

                                        Discharging:2.5V

                                        Internal Resistance ≤ 0.5mΩ (At 0.2C rate, 2.0V cut-off)

                                        Working Temperature Charging: -10℃~75℃

                                        Discharging: -20℃~75℃

                                        Storage Temperature ≤1month: -10–45℃

                                        ≤3month: 0–30℃

                                        ≤6month: 20±5℃

                                        Life Cycle >6000 times

Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy StorageDeep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage



Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy StorageDeep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage

                                                    Applications:

                                              1. Lifepo4 lithium ion power applications:

                                                  Engine starting battery; Electric Cars; Intellectual robots; EV cars, Electric Bicycle/Motorcycle/

                                                  Scooter/Electric Forklift/Electric Boat/Ship, Camper/Caravan, Lawn mower,  Golf trolley/carts/

                                                  Sightseeing/Car; Power tools.

                                              2. Lifepo4 lithium ion Energy storage:

                                                  Solar and Wind Power system; City On/Off Grid PV System, Community and Family, RV

                                                  Caravan, Marine yachts.

                                              3. Lifepo4 lithium ion Back-up system and UPS:

                                                  Telecom base, CATV-system, UPS(Uninterrupted Power Supply),Computer server center,

                                                  Medical instrument, Military equipment.

                                              4. Lifepo4 lithium ion General Energy Storage :

                                                  Back-up Power, Miner’s lamp, Portable power supply, Digital products security and Electronics;

                                                  Mining light/Torch/LED light/Emergency light.



Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy StorageDeep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage



                         Specifications:

                         Brand Name :                              QH Lifepo4 Lithium Ion Battery/Li ion battery/LFP

                         Nominal Voltage :                        3.2V

                         Nominal Capacity :                      5AH - 400AH

                         Casing Shell :                              Aluminum

                         Shape :                                        Prismatic

                         Cut-off Charging Voltage :           3.65V

                         Cut-off Discharging Voltage :       2.50V

                         Place of Origin :                           Shenzhen China

                         Certification :                                CE/ROHOS/UL/MSDS/UN38.3/KC/BIS

                         Minimum Order Quantity :           1pcs

                         Shippment package:                    Cartoon package or as required

                         Leading Time :                             Sample 3-5days, Bulk order 7-15days

                         Payment Terms ;                          TT/Paypal

                         Shipping Method:                         Air/Sea/Express

                         Supply Ability :                             1000000pcs/Month

                         Trade Term:                                  EXW,FOB,CIF

                         Service :                                       OEM/ODM

                         Applications:                                 EV/Electric Cars/Bus/Scooters/Motorcycle/

                                                                               Bike/Caravan/Campers/Forklift/UPS/

                                                                              Solar/Wind EnergyStorage/PV/HEV/

                                                                              Telecom/Backup Power

 Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage

Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage



                                             Advantages:



                                            Longer battery life – 6000times life cycle , 5 times more than lead acid batteries

                                            Low self-discharge

                                            Free of charge memory

                                            Steady discharge and charge performance.

                                            Outstanding thermal stability

                                            Wide temperature performance

                                            Short circuit protection

                                            Over charge and over discharge protection

                                            Over current protection

                                            Easy carrying and installation - can be carried and installed in any direction

                                            Fast charging - about 4~6 hours to be fully charged

                                            Lighter weight - 1/2~1/4 in weight compared to LA batteries

                                            Require no change to a lead acid battery charging system

                                            Better safety - mild warm, no explosion and firing, free of leakage

                                            Environmentally friendly - no poisonous lead, no acid, no heavy/rare metals,

                                            No gasses during charge, free of leakage and pollution



Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage

Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage

                              1.Automatic Coating Machine with domestic leading technology

                              Automatically load materials and set thickness with automatic thickness measurement system

                              at the end of the machine; variable-frequency adjustment in oven’s circulatory and exhaust system.

                              2. Positive automatic production line

                              Positive electrodes automatic and serial point-welding, adhesive tape sticking for electrode lug and

                              softening; high automation and better consistency.

                              3. Negative automatic production line

                              The use of wet slurry coating on the powder-type automatically set between the struts of scraping

                              operation fine edge devices, which require so strictly for time, speed ,temperature and matching.

                              Automatic negative production line and the product circulation rate is one of the highest levels for

                              the domestic factories.

                              4. Entire air-conditioner workshop

                              To produce high quality battery, we must control the environmental conditions, and the whole

                              air-conditioning control of better power production workshop can reduce moisture, reduce the

                              impurity, improve product quality, and also to create a comfortable working conditions to staff.



  Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage



                              Quality is life, Shenzhen QH is confident in the superior quality of products being the most

                        effective. The company 's QC system consists of IQC, IPQC, QAQE, FQC and stoichiometric

                        composition , more than 320 highly trained quality control personnel , equipped with advanced

                        testing equipment, in strict accordance with quality documentation requirements required to

                        ensure that from raw materials, production process to the final product shipments have been

                        strictly controlled to ensure stable and reliable quality Great Battery .



Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy StorageDeep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage

Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy StorageDeep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage





                         Shenzhen QH is a leading manufacturer in lithium ion battery for over 10 years.

                         We can produce LiFePo4 battery cells in wide range of capacity

                         400AH/240AH/200AH/176AH/120AH/100AH/90AH/85AH/80AH/75AH/66AH/60AH/50AH/

                         45AH/40AH/35AH/25AH/20AH/15AH are available in inventory. just let me know your detailed request,

                         we will provide you the best battery solution.

                         Excellent service on before-sale, on-sale and after-sale
                         -Your inquiry related to our products or prices will be replied in 12 hours.
                         -We will track the shipping status time by time so that buyer can receive our goods in time and safely.
                         -Protection of your sales area, ideas of design and all your private information.
                         -Whatever big or small order , we will provide all the best quality , best service.

                         - Customized design is available, OEM and ODM are welcome.

                         -Shipment by Air Express (door to door service), by Air Flight and by Vessel, all Available.

                         -Offer the highest quality with the best price.


                         If you need any assistance, just feel free to let us know.you are always welcome to visit our factory,

                         And If you are going to China, we can book hotel and ticket and arrange personal translator and

                         travelling for you!





Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage



                               FAQ



                      Q1. Can I just try samples for the first order?

                      A: Yes, trail order is acceptable. we can sell just a few pcs for you to confirm the specifications of our products.



                      Q2. Can I put LiFePO4 battery pack in parallel or series by ourselves?

                      A: Yes, but the batteries should be in same voltage and capacity, or it will influence the cycle life of the battery

                      pack. Also, you should tell us and we will match them before delivery. Before handling the battery, checking

                      the voltage of each battery is necessary. there are few tips we need to pay attention;

                      No.1 Make sure the voltage of each battery are same before put in parallel. If they are not same, charge

                      them to the same rate.

                      No.2 Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity

                      of the whole battery pack.

                      No.3 Advise us the target capacity of the whole pack if you would like to put them in series.

                      We will choose the suitable BMS for each battery.



                      Q3. What is your warranty?

                      A: We offer 5 years warranty for all of our battery pack. we ensure at least 6000 cycle life for the LiFePO4

                      battery pack, which means, after 2000@80% DOD, there will still around 60% capacity left. You can use it

                      for at least 5 years for normal 1 time charge and discharge every day.



                      Q4. How does QH Technology ship the LiFePo4 battery packs?

                      A: The goods can be picked up by your own forwarder. If there is no forwarder. Then we can ship the battery

                      packs. For sample order or small battery packs, we can ship by express through Fedex, UPS, TNT, DPD etc.

                      If whole parcel over 100KG,can ship by air or by sea, sea shipping is more economical.

                      Customer can tell us your nearest airport name or sea port name for QH Technology sales person

                      to check the best option for you.



                     Q5. Do you also have BMS and Chargers?

                     A:Yes, we do, if you need any to work with the battery cells , just advise us, we will provide

                     them along with the lifepo4 battery cells to you.



                     Q6. How about the MOQ of the order?

                     A: No MOQ, feel free to contact us.



                     Q7: What is the lead time that you ship the goods after I pay?
                     A:3~7 days for sample order, 5-15 days for bulk order, mainly depends on order qty



                     Q8: Can I have discount price and service for wholesale?
                     A:Yes we are professional manufacturer and have favorable price and good service for wholesalers.

                     Both OEM and ODM are warmly welcome .



Deep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy StorageDeep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy StorageDeep Cycle 3.2V 400Ah LiFePO4 Battery Cell Rechargeable 3.2 V Solar Battery Cell For Home Energy Storage
