| Place of Origin: | China |
| Brand Name: | QH |
| Certification: | CE ROHs LC |
| Model Number: | lifepo4 |
| material: | lifepo4 |
|---|---|
| voltage: | 12v |
| capacity: | 45ah |
| dimensions: | 223*120*178mm |
| charging volt: | 14.6v |
| cycle life: | more than 2000 times |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | carton packing |

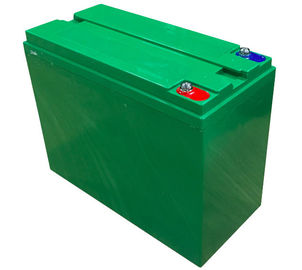

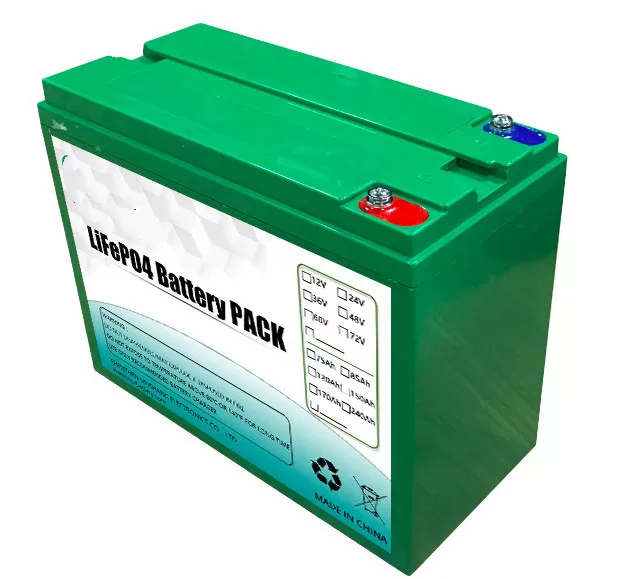

45ah 12v lithium battery deep cycle life li ion factory for UPS EV power supply
12v 45ah is a type of LFP battery Pack, made of electric lithium battery for wholesale supplies, made by QH, one of the top battery manufacturers. It serve well as golf cart batteries and electric vehicle battery. 2000 Times Deep Cycle LiFePO4 12V Battery Pack Storage.
12volt 24v 38v lithium ion battery boxes is offered by QH a top battery factory company for diy battery and UPS battery.
Voltage :12V | Capacity:75Ah/85Ah/90Ah/120Ah/170Ah/240Ah or Customized;
| Normal Voltage | 12V |
| Nominal Capacity | 45Ah |
| Internal Resistance | ≤60mΩ |
| Cycle Life | >2000 cycles @1C 100%DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100% @0.5C |
| Efficiency of Discharge | 96~99% @1C |
| Charge Voltage | 14.6±0.1V |
| Standard Charge Model | 0.2C to 14.6V, then 14.6V,charge current to 0. 02C (CC/CV) |
| Continuous Charge Current | 23(≤0.5C) |
| Max.Charge Current | 45A (1C) |
| Charge Cut-off Voltage | 14.6±0.1V |
| Continuous Current | <45A (1C) |
| Max. Pulse Current | 90A(<3s) (2C) |
| Discharge Cut-off Voltage | 10V |
| Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity |
| Water Dust Resistance | IP56 |
| Plastic Case | ABS |
| Dimensions (mm) | 223*120*178mm |
| Weight (kg.) | 5550g |
| Terminal | T2 |
12v lithium battery packIf you are looking for 12v lithium battery, electric battery, battery wholesale, golf cart batteries or ev battery manufacturers, please feel free to contact me.
