Customized 12v 200AH Lifepo4 Battery Pack Rechargeable Deep Cycle Lithium Ion LFP For Electric Cars

I'm Online Chat Now

Customized 12v 200AH Lifepo4 Battery Pack Rechargeable Deep Cycle Lithium Ion LFP For Electric Cars

China Customized 12v 200AH Lifepo4 Battery Pack Rechargeable Deep Cycle Lithium Ion LFP For Electric Cars supplier
Customized 12v 200AH Lifepo4 Battery Pack Rechargeable Deep Cycle Lithium Ion LFP For Electric Cars supplier Customized 12v 200AH Lifepo4 Battery Pack Rechargeable Deep Cycle Lithium Ion LFP For Electric Cars supplier Customized 12v 200AH Lifepo4 Battery Pack Rechargeable Deep Cycle Lithium Ion LFP For Electric Cars supplier

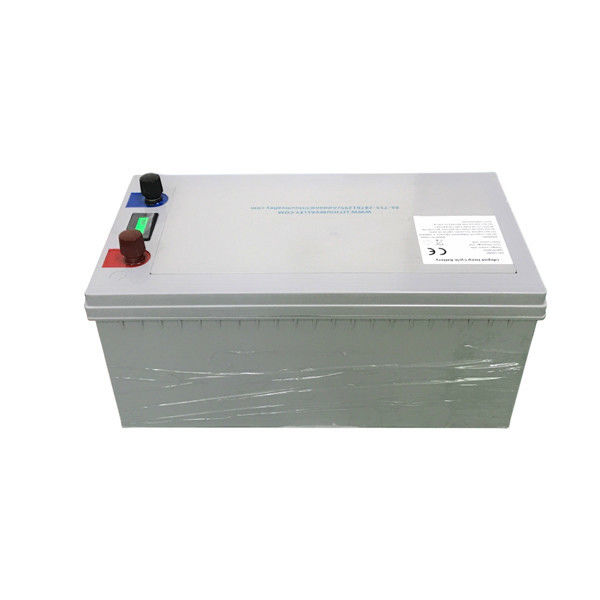

Large Image :  Customized 12v 200AH Lifepo4 Battery Pack Rechargeable Deep Cycle Lithium Ion LFP For Electric Cars

Product Details:

Place of Origin: China
Brand Name: QH
Certification: CE ROHs LC
Model Number: lifepo4
Material: Lifepo4
Voltage: 12V
Capacity: 200ah
Dimensions: 485*175*240mm
Weight: 32KG
Discharging: cut-off voltage 10V

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: carton packing
Contact Now
Detailed Product Description

Customized 12v 200AH Lifepo4 Battery Pack Rechargeable Deep Cycle Lithium Ion LFP For Electric Cars



Applications : Electric vehicles, EV cars, hybrid buses, e-bikes, electric scooters, e-bus, golf trolley ,caravan , Electric boats, ships, catamarans, submarines Mobile homes, campers and trailers ,Small solar applications Large PV installations - off grid power supplies Smart-grid solutions – energy storage and balancing Backup systems, UPS, generators ,Telecommunication equipment, mobile phone operator base stations, networking power supplies Civil, public and military emergency energy supplies





Item Specification Note
Nominal Voltage: 12V Any voltage can be customized
Nominal Capacity: 200Ah Any capacity can be customized
Discharge Cut-Off: 8V
Charge Cut-Off: 14.6V
Charge Current: 40A Free customization service
Cont. Discharge: 40A Free customization service
Peak Discharge: 50A Free customization service
Impedance: ≤200mΩ
Charge Temperature: 0℃ - 45℃
Discharge Temperature: -20℃ - 60℃
Charge Method: CC/CV
Life Cycle: 2000+ 80% DOD, Max. 95% DOD
BMS: With BMS
Dimension: 485mm*175mm*240mm Any dimension can be customized
Weight: 32KG
Customized 12v 200AH Lifepo4 Battery Pack Rechargeable Deep Cycle Lithium Ion LFP For Electric Cars

Advantages:



  • Longer battery life – 2000times life cycle , 5 times more than lead acid batteries
  • Low self-discharge
  • Free of charge memory
  • Steady discharge and charge performance.
  • Outstanding thermal stability
  • Wide temperature performance
  • Short circuit protection
  • Over charge and over discharge protection
  • Over current protection
  • Easy carrying and installation - can be carried and installed in any direction
  • Fast charging - about 4~6 hours to be fully charged
  • Lighter weight - 1/2~1/4 in weight compared to LA batteries
  • Require no change to a lead acid battery charging system
  • Better safety - mild warm, no explosion and firing, free of leakage
  • Environmentally friendly - no poisonous lead, no acid, no heavy/rare metals, no gasses during charge, free of leakage and pollution


Customized 12v 200AH Lifepo4 Battery Pack Rechargeable Deep Cycle Lithium Ion LFP For Electric Cars



FAQ



Q1. Can QH TECHNOLOGY ship battery out of China?
R1: Yes, we can ship to any country out of China, you can tell us your address to check.

Q2. How does QH TECHNOLOGY ship the LiFePo4 battery packs?
R2: For sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 100KG, can ship by air or by sea,sea shipping is more cheaper.
Customer can tell your nearest airport name and sea port name for Lithium Valley sales person to check the best option for you.

Q3. Can we put different LiFePO4 battery pack in parallel or series by ourself?
R3: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself.
It may cause danger and hurt the cycle life of battery.

Q4. Does your battery pack include BMS? Can we use it for car?
R5: Yes, our battery pack include BMS, you can use it for electric car. Smart BMS with Telecommunicaion functions is optional.



Q6. What is your warranty?
R6:We offer 2 years warranty for all our battery pack. we ensure at least 2000 cycle life for the LiFePO4 battery pack, which means, after 2000@80% DOD, there will still around 60% capacityt left. You can use it for at least 8 years for normal 1 time charge and discha



Those Who Are Looking For A Professional Manufacturer For 12V, 200AH Lifepo4 Battery Pack, At Factory Price, With Top Quality, PLEASE FEEL FREE TO CONTACT US
