| Place of Origin: | China |
| Brand Name: | QH |
| Certification: | CE ROHs LC |
| Model Number: | lifepo4 |
| Mateiral: | LiFePO4 |
|---|---|
| Charging: | Max Charging:5C |
| Voltage: | 3.2V |
| Discharging Rate: | Max Peak Discharging:5C |
| Capacity: | 90AH |
| Internal Resistance: | ≤ 0.8mΩ (At 0.2C rate, 2.0V cut-off) |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | carton packing |
| Specifications: | |
| Model | QH-LFP36130200-90 |
| Casing material for single cell | Aluminum shell |
| Nominal Voltage | 3.2V |
| Capacity | Max:90Ah |
| Min: 89Ah | |
| Core size | D36*W130*H200MM |
| Cell Weight | 2.0KG ±20g |
| Charging Current | Standard Charging: 5A (0.2C rate) |
| Max. Charging: 25A (1C rate) | |
| Max Discharging Rate | Max Continuous Discharging:3C |
| Max Peak Discharging:5C | |
| Cut-off Voltage | Charging:3.65V |
| Discharging:2.5V | |
| Internal Resistance | ≤ 0.8mΩ (At 0.2C rate, 2.0V cut-off) |
| Working Temperature | Charging: -10℃~45℃ |
| Discharging: -20℃~60℃ | |
| Storage Temperature | ≤1month: -10–45℃ |
| ≤3month: 0–30℃ | |
| ≤6month: 20±5℃ | |
| Life Cycle | >2000 times (80% of initial capacity at 0.2C rate, IEC Standard) |
| Global Insurance OEM/ODM | |
Deep Cycle Long Lifespan Li ion Battery ESS 3.2V 90AH LiFePO4 Batteries Cell High power lifepo4 battery cells with big capacity from 5AH to 240AH, 2000cycles 3.2v 100ah lifepo4 battery cells, Factory directly supply 3.2v 100ah lifepo4 battery cell, easy for building and hot/popular LIFEPO4 BATTERY .Factory direct supply 3.2v lifepo4 battery cells, 2000cycles 100ah battery cell and 3.2v lifepo4 battery cell with 100ah capacity.

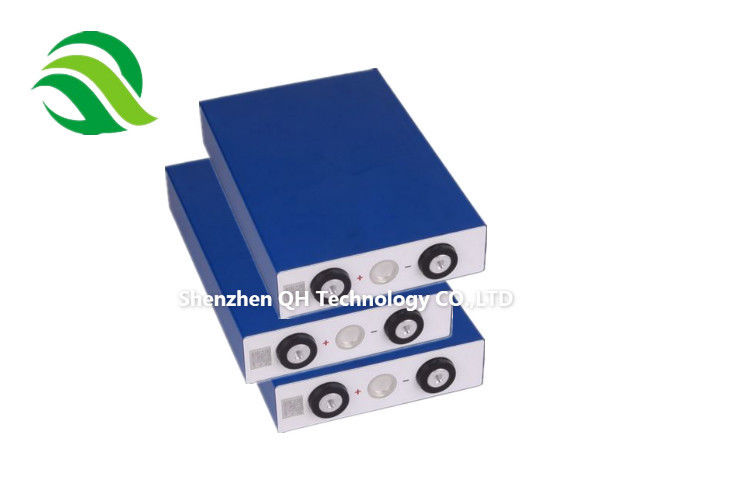

Deep Cycle Long Lifespan Li ion Battery ESS 3.2V 90AH LiFePO4 Batteries Cell
Main Feature: lithium battery high power LiFePO4 cells - high quality lithium ion phosphate battery for all kinds of lithium cells applications; long life sapn which can reach up to 2000 times
Benefits
Battery Comparison
Smaller size, normally 1/3 as large as conventional SLA battery;
