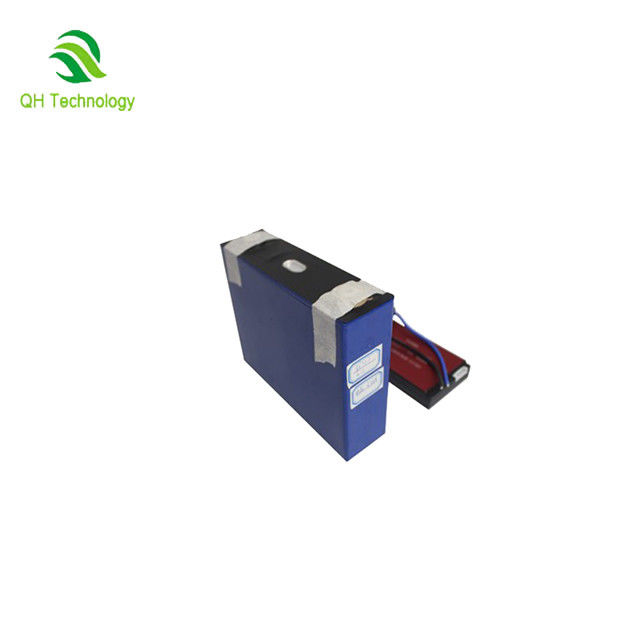

3.2V 86AH Lifepo4 Battery Pack Solar Controller Inverter

3.2V 86AH Lifepo4 Battery Pack Solar Controller Inverter

    • 3.2V 86AH  Lifepo4 Battery Pack Solar Controller Inverter
    • 3.2V 86AH  Lifepo4 Battery Pack Solar Controller Inverter
    • 3.2V 86AH  Lifepo4 Battery Pack Solar Controller Inverter
  • 3.2V 86AH  Lifepo4 Battery Pack Solar Controller Inverter

    Product Details:

    Place of Origin: China

    Payment & Shipping Terms:

    Minimum Order Quantity: 4pcs
    Price: Negotiable
    Delivery Time: 5-8 work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description

      QH-LFP48174128-86AH
    Casing material for single cell Aluminum shell
    Nominal Voltage 3.2V
    Capacity 86AH
    DOD 80%
    Life Cycle 5000 times
    Internal Resistance ≤ 0.8mΩ
    Cut-off Voltage Charging: 3.65V
    Discharging: 2.5V
    Charging Current 17.2A (Standard Charging)
    Max Charge Current 86A
    Const. Discharge Current 86A
    Max Discharge Current 172A
    Dimension D48*W174*H128 MM
    Cell Weight 2.12 KG
    Safety Protection Over Charging
    Over Discharging
    Short Circuit
    Penetration
    Thermal shock
    No Fire/Explosion
    Working Temperature Charging: 0℃- 45℃
    Discharging: -20℃- 60℃
    Storage Temperature ≤1month: -20 – 45℃
    ≤6month: -20 – 35℃
    During transportation: 20℃

    Our Guarantee:



    Ensure that the product undergoes rigorous inspection before leaving the factory to ensure that the quality of the manufactured product is qualified. In addition to, we promise that this project will be free from maintenance and assembly defects within two years from the date of purchase. Warranty applies only to material or operational defects that occur at the time of purchase. In the meantime, we will repair or replace the products that are deemed defective for these reasons. You will be asked to provide proof of purchase (invoice or receipt). This warranty does not apply to any damage or consequential damage resulting from incorrect application, modification or failure to follow the procedures described in this manual. Therefore, it is hoped that you can read the instructions carefully and follow the instructions before using this product.





    Battery quality control for after-sale



    All QH batteries in the package have a high degree of consistency. In a group, each cell has after-sales service for quality control. Your own electronic code (ID number), assuming that one cell in the package was damaged in a few years, we can provide customers with exactly the same cell to replace the damaged cell (same voltage, capacity, impedance, etc.) To ensure that all the cells in this package have a very high consistency. Melsen has a strong system for this job.







    Features:

    High cycle life
    Low self-discharge
    Environmental protection, no pollution
    Excellent safety performance
    No maintenance operation
    Extensive temperature operation.
