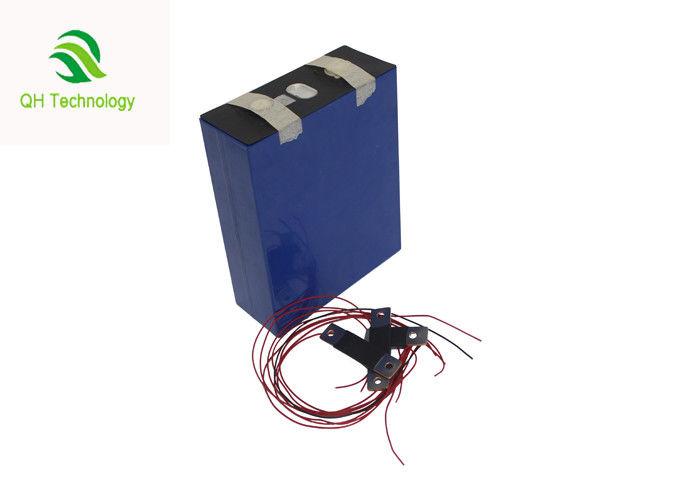

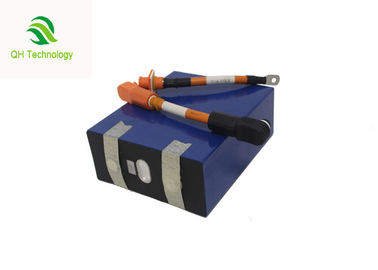

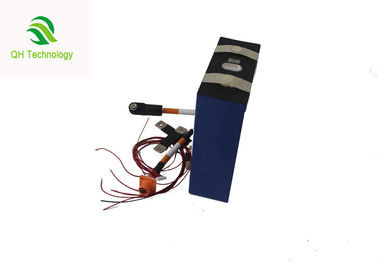

3.2V 240AH Lifepo4 Prismatic Battery Powerwall Energy Storage

3.2V 240AH Lifepo4 Prismatic Battery Powerwall Energy Storage

    • 3.2V 240AH  Lifepo4 Prismatic Battery Powerwall Energy Storage
    • 3.2V 240AH  Lifepo4 Prismatic Battery Powerwall Energy Storage
    • 3.2V 240AH  Lifepo4 Prismatic Battery Powerwall Energy Storage
  • 3.2V 240AH  Lifepo4 Prismatic Battery Powerwall Energy Storage

    Product Details:

    Place of Origin: China

    Payment & Shipping Terms:

    Minimum Order Quantity: 4pcs
    Price: Negotiable
    Delivery Time: 5-8 work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description

    Model QH-LFP72174166-240AH
    Casing material for single cell Aluminum shell
    Nominal Voltage 3.2V
    Capacity 240AH
    Dimension D72*W174*H200 MM
    Cell Weight 5.20 KG
    Internal Resistance ≤ 0.8mΩ
    Charging Current 48A (Standard Charging)
    Max Charge Current 240A
    Const. Discharge Current 240A
    Max Discharge Current 360A
    Cut-off Voltage Charging: 3.65V
    Discharging: 2.5V
    Working Temperature Charging: 0℃- 45℃
    Discharging: -20℃- 60℃
    Storage Temperature ≤1month: -20 – 45℃
    ≤6month: -20 – 35℃
    During transportation: 20℃
    DOD 80%
    Life Cycle 5000 times
    Safety Protection Over Charging
    Over Discharging
    Short Circuit
    Penetration
    Thermal shock
    No Fire/Explosion

    Our Guarantee:



    Ensure that the product undergoes rigorous inspection before leaving the factory to ensure that the quality of the manufactured product is qualified. In addition to, we promise that this project will be free from maintenance and assembly defects within two years from the date of purchase. Warranty applies only to material or operational defects that occur at the time of purchase. In the meantime, we will repair or replace the products that are deemed defective for these reasons. You will be asked to provide proof of purchase (invoice or receipt). This warranty does not apply to any damage or consequential damage resulting from incorrect application, modification or failure to follow the procedures described in this manual. Therefore, it is hoped that you can read the instructions carefully and follow the instructions before using this product.





    Battery quality control for after-sale



    All QH batteries in the package have a high degree of consistency. In a group, each cell has after-sales service for quality control. Your own electronic code (ID number), assuming that one cell in the package was damaged in a few years, we can provide customers with exactly the same cell to replace the damaged cell (same voltage, capacity, impedance, etc.) To ensure that all the cells in this package have a very high consistency. Melsen has a strong system for this job.







    Features:

    High cycle life
    Low self-discharge
    Environmental protection, no pollution
    Excellent safety performance
    No maintenance operation
    Extensive temperature operation.

    3.2 Volt 240Ah Lifepo4 Battery Cells , Lifepo4 Battery Bank Off Grid Home Generator3.2 Volt 240Ah Lifepo4 Battery Cells , Lifepo4 Battery Bank Off Grid Home Generator




    Tag:

    lithium po4 battery,

    lipo ev battery
