| Place of Origin: | Guangzhou China |
| Brand Name: | QH |
| Certification: | KC/MSDS/UN38.3/ROHS/UL |
| Model Number: | QH-LFP48174166-100AH |
| Warranty: | 3 Years |
|---|---|
| Type: | Lifepo4 |
| Nominal volt: | 3.2V |
| Nominal capa: | 100Ah |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Packaging Details: | carton packing |

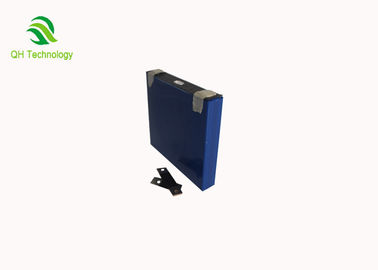

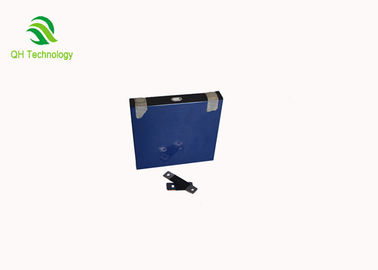

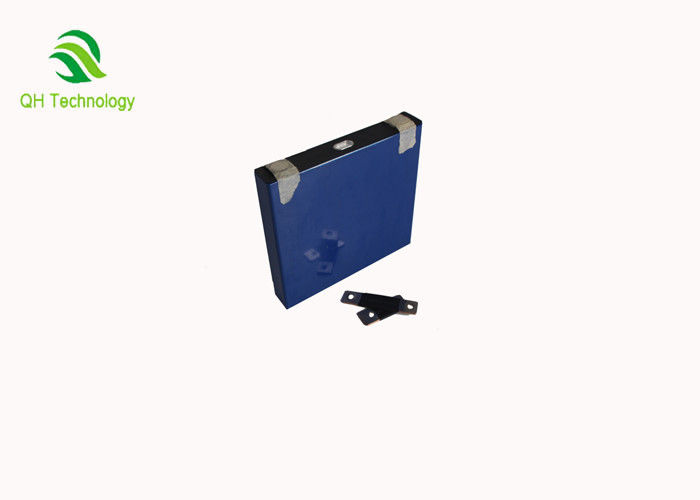

Long Lifespan Prismatic lifepo4 power battery 3.2v100ah For PV off grid Power supplies
![]()
| Model | QH-LFP34200168-100AH |
| Casing material for single cell | Aluminum shell |
| Nominal Voltage | 3.2V |
| Capacity | 100AH |
| Internal Resistance | ≤ 0.8mΩ |
| Cut-off Voltage | Charging: 3.65V |
| Discharging: 2.5V | |
| Charging Current | 20A (Standard Charging) |
| Max Charge Current | 100A |
| Const. Discharge Current | 100A |
| Max Discharge Current | 200A |
| Dimension | D34*W200*H168MM |
| Cell Weight | 2.85 KG |
| Working Temperature | Charging: 0℃- 45℃ |
| Discharging: -20℃- 60℃ | |
| Storage Temperature | ≤1month: -20 – 45℃ |
| ≤6month: -20 – 35℃ | |
| During transportation: 20℃ | |
| DOD | 80% |
| Life Cycle | 5000 times |
| Safety Protection | Over Charging Over Discharging Short Circuit Penetration Thermal shock No Fire/Explosion  |

Battery Quality:
1. Batteries - Level batteries ensure that the full capacity and high capacity of batteries.
2. Protection - dual IC chip, can anti-overload, reverse current, reverse charger, reverse short circuit.
3 .Shows. Combination type: injection molding technology, to ensure the stability of the batteries.
4 Shows. Certification: ROHS, FCC, CE, ISO9001. Chemical substances, UN38.3 IEC62133.
5. No memory, environmental protection, long life cycle.
Feature:
Packing & Delivery
Packing:
Inner packaging material: seven-layer corrugated packaging outside and EPE foam.
Delivery:
>>> EMS / UPS / DHL/ FEDEX, etc. Used for battery samples transport, sea or air transport.
>>> You can also specify other battery Shipping Terms.
![]()
![]()
![]()
![]()
![]()
