| Place of Origin: | China |
| Brand Name: | QH |
| Certification: | CE ROHs LC |
| Model Number: | lifepo4 |
| Material: | LiFePo4 |
|---|---|
| Voltage: | 96V |
| Capacity: | 80Ah-100Ah-150Ah-200Ah-240Ah |
| Warranty: | 5years |
| Lifecycle: | 4000Times |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | carton packing |

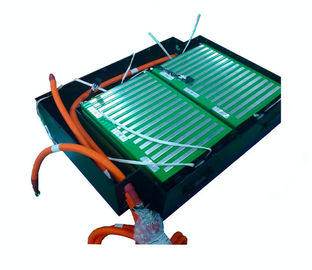

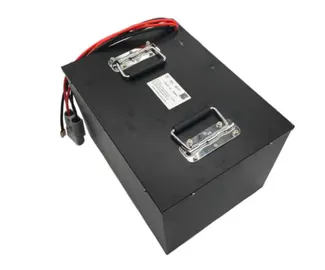

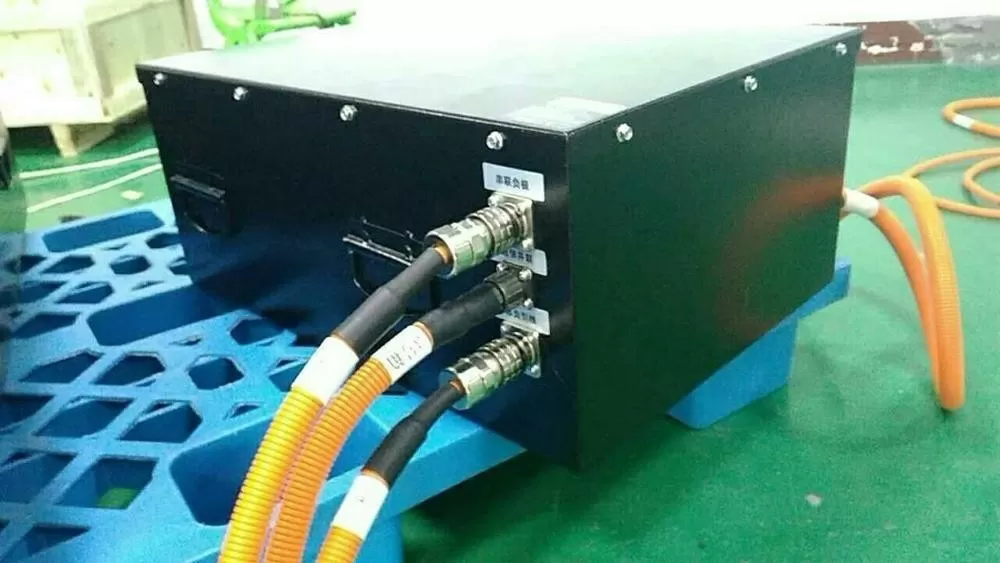

96v battery, 96 volt battery , 96 volt lithium ion battery pack For Car Conversion EV
Features of QH Brand Electric car battery 96v 100ah Rechargeable Lithium ion battery Truck battery
1) Car Battery with high capacity, light weight, high consistency, high security.
2) LiFePO4 battery pack 96V with long cycle life(over 4000 times).
3) Wide operating temperature range.
4) No memory effect, environmental friendly
5) High gravimetric specific energy, high volumetric specific energy, good deep discharge capacity.
6) Li ion prismatic batteries can be customized.
96V 100Ah Lithium Battery Pack
| Cell | model | QH-100Ah | |
| Capacity(0.5C) | 100Ah | ||
| rated voltage(V) | 3.2V | ||
| Typical Impedance (mΩ) | ≤2mW | ||
| Battery material | Lifepo4 battery | ||
|
Lithium ion phosphate battery pack |
Combination method | 1P32S | |
| Minimal capacity(0.5C) | 100Ah | ||
| Nominal voltage | 96V | ||
| Max. charge voltage | 116.8V | ||
| Discharge cut-off voltage | 64V-80V | ||
| Max Charge current | 50A | ||
| Max Working current | 200A | ||
| Standard charge current | 60A | ||
| Standard discharge current | 100A | ||
| Pack Impedance standard | ≤35mW | ||
| Weight (Approx.) | ≈93Kg | ||
| Max. dimension(L×W×H)(mm) | ≤ 90*290*370 mm |
||
|
Operating temperature |
Charge temperature | 0℃~45℃ | |
| Discharge temperature | -20℃~55℃ | ||
96V 150Ah Lithium Battery Pack
| Model | QH96V150Ah-EV05 |
| Rated voltage of 96v 150ah electric tricycle battery | 96V |
| Rated capacity | 150Ah |
| Standard charge | Constant current at 0.3C with max. voltage of 87.6V and cutoff current at 0.01C |
| Standard discharge | Constant current at 0.5C to 60V |
| Max. charge current | 150A (0.5C) |
| Max. discharge current | 150A (0.5C) |
| Operating temperature | Charge:0~45 deg.C;discharge:-20~65 deg.C |
| Storage temperature | -10~45 deg.C less than 3 months;-0~25 deg.C less than 1 year |
| Storage humidity | 25 to 85% RH |
| Weight of 96v 150ah electric tricycle battery | 220KG |
| Dimension | 620*580*203mm*2pcs |
| Long cycle life | More than 4000 times(80% DOD) |
| Typical Internal Resistant | 19mΩ |
96V 200Ah Lithium Battery Pack
| Cell | model | QH-200Ah | |
| Capacity(0.5C) | 200Ah | ||
| rated voltage(V) | 3.2V | ||
| Typical Impedance (mΩ) | ≤2mW | ||
| Battery material | Lifepo4 battery | ||
|
Lithium ion phosphate battery pack |
Combination method | 1P32S | |
| Minimal capacity(0.5C) | 200Ah | ||
| Nominal voltage | 96V | ||
| Max. charge voltage | 116.8V | ||
| Discharge cut-off voltage | 64V-80V | ||
| Max Charge current | 100A | ||
| Max Working current | 400A | ||
| Standard charge current | 60A | ||
| Standard discharge current | 100A | ||
| Pack Impedance standard | ≤20mW | ||
| Weight (Approx.) | ≈275Kg | ||
| Max. dimension(L×W×H)(mm) | ≤ L1450*W360*H300(mm) | ||
|
Operating temperature |
Charge temperature | 0℃~45℃ | |
| Discharge temperature | -20℃~55℃ | ||
